| Standard Screw Air Compressor | ||
| Model | Picture | Features |
| C-10 |
 |
Power: 10hp/7.5kw Displacement/pressure: 1.20/0.7(m³/min/Mpa) 1.10/0.8(m³/min/Mpa) 0.96/1.0(m³/min/Mpa) 0.80/1.3(m³/min/Mpa) Noise:65±2 db(A) Size: L*W*H=890*630*950mm Weight: 350kg Package: Plywood box |
| C-15 |
Power: 15hp/11kw Displacement/pressure: 1.65/0.7(m³/min/Mpa) 1.53/0.8(m³/min/Mpa) 1.32/1.0(m³/min/Mpa) 1.10/1.3(m³/min/Mpa) Noise:65±2 db(A) Size: L*W*H=950*860*1130mm Weight: 450kg Package: Plywood box |
|
| C-20 |
Power: 20hp/15kw Displacement/pressure: 2.25/0.7(m³/min/Mpa) 2.03/0.8(m³/min/Mpa) 1.82/1.0(m³/min/Mpa) 1.55/1.3(m³/min/Mpa) Noise:65±2 db(A) Size: L*W*H=950*860*1130mm Weight: 470kg Package: Plywood box |
|

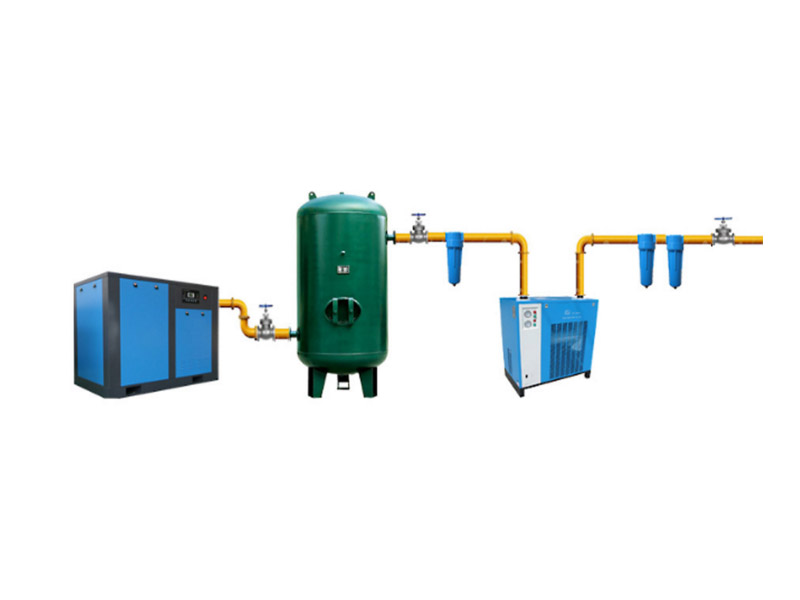

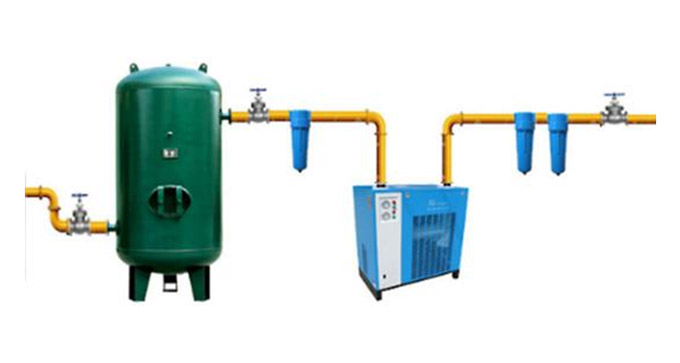

| Air Tank, Dryer & Filtering |
 |
10hp 1. Air Tank: 0.6m³ 2. Air Dryer 3. Filtering system |
|
15hp 1. Air Tank: 1m³ 2. Air Dryer 3. Filtering system |
||
|
20hp 1. Air Tank: 1m³ 2. Air Dryer 3. Filtering system |
||
