BT-5600: Tilting Platform with 5 rows of working hole

Description








Specification
Model BT-5600 BT-6000
Platform Length 5600 mm 6000 mm
Platform Width 2200 mm 2200 mm
Platform Height 580 mm 580 mm
Tower Pulling Capacity 95KN 95KN
Pneumatic Pressure 0.8Mpa 0.8Mpa
Tower Working Range 360° 360°
Platform Lifting Capacity 3500 kgs 3500 kgs
Max. Hydraulic Pressure 69 Mpa 69 Mpa

Main Features
1) Hydraulic Inclined lifting platform with protable fiexible lifting leg makes all collision vehicles can be moved more conveniently. There is no contact with floor during platform lifting so as to reduce the damage to floor.
2) Square holes type working platform which was once moulded by large-scale numerical control flame cutting. The platform has high platness and strength which has no fixation dead zone and more fast and convenient pulling.
3) Double tower can rotate 360° across the platform. The rolling of the unique roller makes the tower rotate more stably and flexibly. Unique tower fixation type is facility and reliaboe and without dead zone.
4) The unique sing jaw design of univeral main clamps. Mechanics circulation designed clamps jaw which was through carburization and heating treatment, ensures quick clamping all kinds of vehicles and impoved work efficiency and working life.

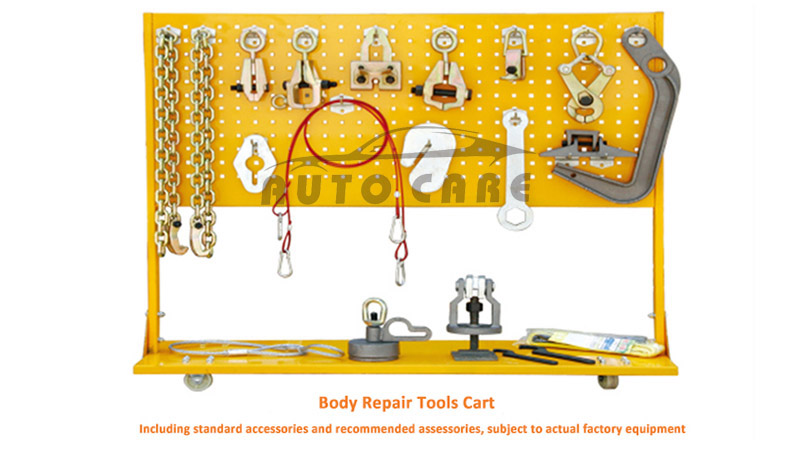

5) The accessory clamps and tools can be used in all kinds of repair and alignment, The main A clamps are forged.
6) The hydraulic system is reliable and strong. Has long service time. Can be maintenance fast and convenient.
