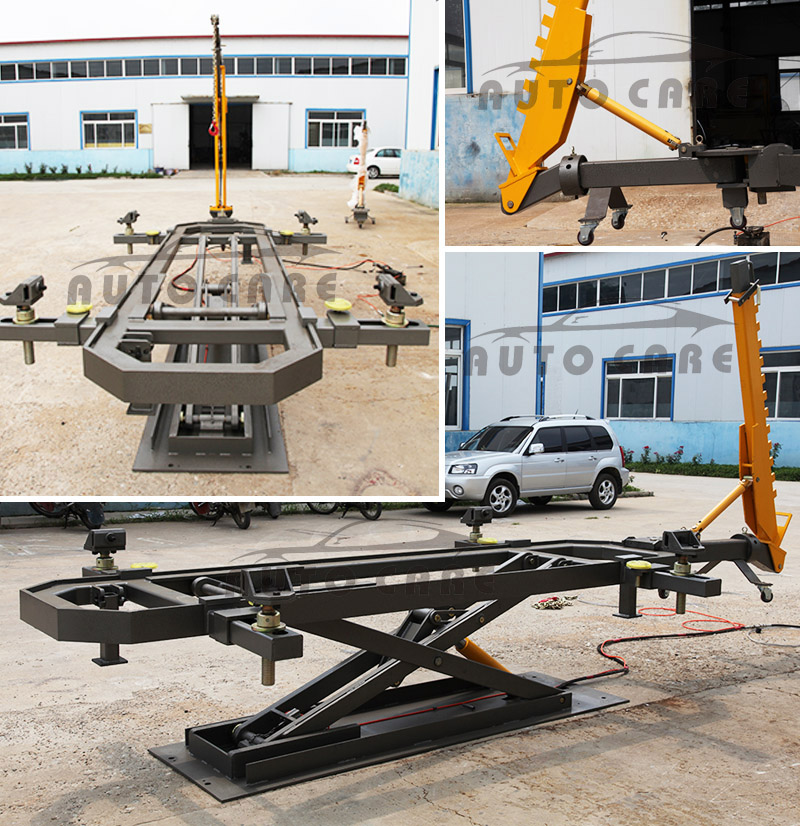

EU-900: European Style, saving space & underground mounting

Description







Specification
Model EU-900A EU-900B EU-900C
Platform Length 3400 mm 3960 mm 4570 mm
Platform Width 900 mm 900 mm 900 mm
Platform Height 120-1380 mm 120-1380 mm 120-1380 mm
Tower Pulling Capacity 95KN 95KN 95KN
Pneumatic Pressure 0.8Mpa 0.8Mpa 0.8Mpa
Tower Working Range 360° 360° 360°
Platform Lifting Capacity 3500 kgs 3500 kgs 3500 kgs
Max. Hydraulic Pressure 69 Mpa 69 Mpa 69 Mpa

Main Features

1) Can Test and repair the vehicle fast;
2) It is a lifting equipment which can be buried underground to make the platform flat with floor;
3) The tower can work on any place of the platform;
4) 120mm height design make the vehicle can be drove on to the platform to be clamped;
5) Main clamp can be removed up, down, front, and back to meet working request;
6) The tower can be titled front, back, up and down.
